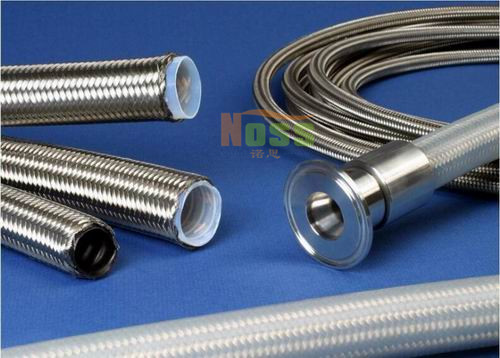

WH00599软管
Construction:Type TSS is manufactured from smooth PTFE tube with stainless steel over braid.
Temp. Range:-70°C and 260°C.
Applications:For transporting corrosive chemicals, hot air, hot oil, steam and so on where a closed bending radius is not required. Not recommended for steam-cold water cycling.
Virgin and anti-static liners are available.
This hose has the advantage of zero friction, high pressure and a wide temperature range and is suitable for CIP and SIP cleaning.
Certification:FDA and USP
结构：内管为完全平滑的食品制药级PTFE软管，外覆不锈钢丝(SUS304L)编织强化.
温度范围：-70℃至+260℃
应用场合：输送强腐蚀性化学品，热空气，热油，蒸汽等。不宜用在蒸汽冷水循环。
可根据客户要求，定制成黑色防静电内管
具有零摩擦、耐高压和耐温广的优势，可进行CIP和SIP清洗
符合FDA和USP认证
| 编码 | 内径 | 外径 |
内管 壁厚 |
弯曲 半径 |
|
| in | mm | mm | mm | mm | |
| WH00599-0003-000 | 1/8" | 3.2 | 6.2 | 0.85 | 60 |
| WH00599-0005-000 | 3/16" | 4.8 | 7.7 | 0.85 | 60 |
| WH00599-0006-000 | 1/4" | 6.4 | 9.2 | 0.85 | 75 |
| WH00599-0008-000 | 5/16" | 7.9 | 10.8 | 0.85 | 100 |
| WH00599-0010-000 | 3/8" | 9.5 | 12.4 | 0.85 | 125 |
| WH00599-0013-000 | 1/2" | 12.7 | 15.9 | 1 | 140 |
| WH00599-0016-000 | 5/8" | 15.9 | 19.3 | 1 | 160 |
| WH00599-0019-000 | 3/4" | 19 | 22.3 | 1.2 | 200 |
| WH00599-0022-000 | 7/8" | 22 | 25.8 | 1.2 | 300 |
| WH00599-0025-000 | 1" | 25.4 | 29.5 | 1.5 | 400 |
